Aluminum Solid Panel

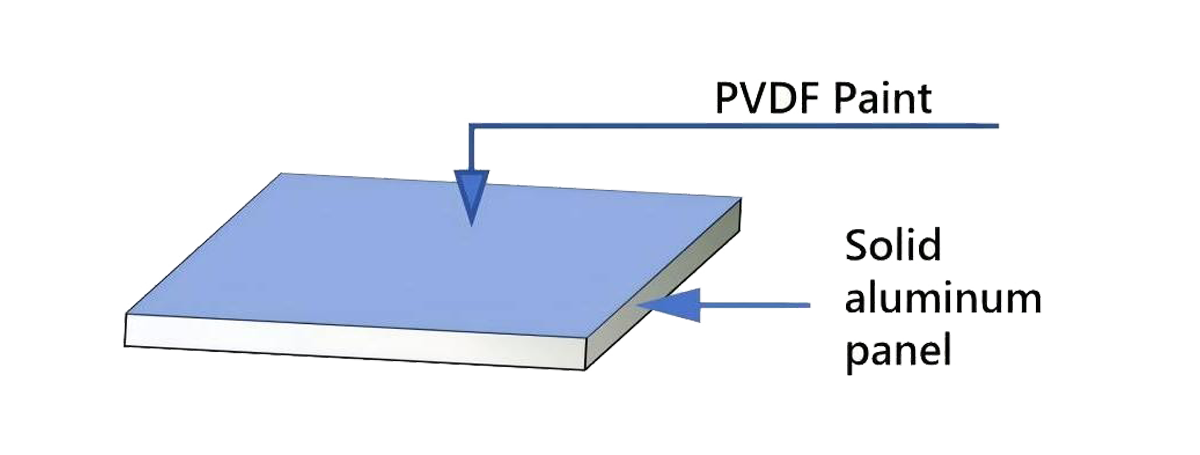

A solid panel is an aluminum panel with a thickness of 2 to 6 mm, coated with paint, and featuring the highest fire resistance rating of A1. According to different processing methods, it is divided into the following two product types:
Flat Panel: The surface is coated with PVDF paint using roller coating technology, offering a rich variety of colors with uniform tones. This panel can be grooved and bent like regular aluminum composite panels (ACP) and provides excellent flexibility for on-site processing.

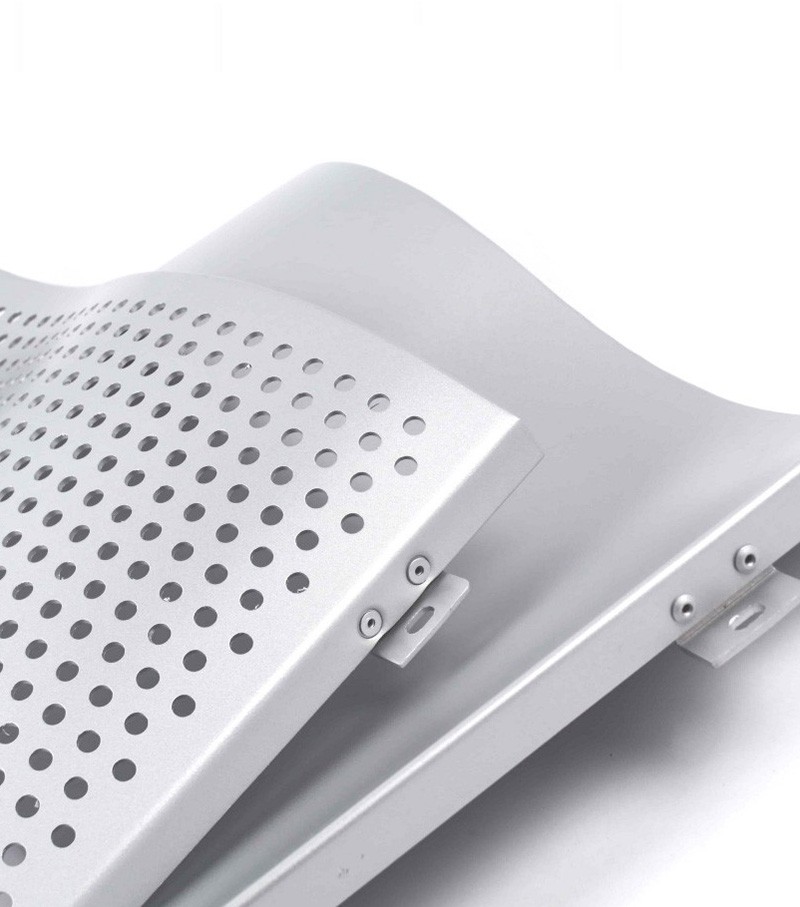

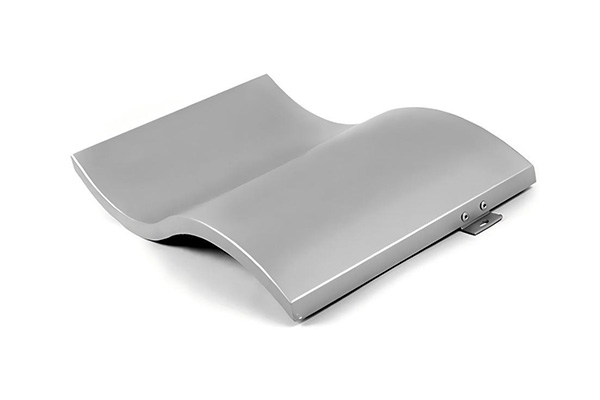

Fabricated Panel: Processed in the factory according to design drawings, the surface can be coated with PVDF paint or weather-resistant powder. After welding, the product has a diverse appearance and solid structure. The coating process involves applying weather-resistant powder or PVDF after processing, giving the product a more vibrant color range. Customers can directly transport the finished product to the site for installation, saving on construction costs.
Flat Panel: The surface is coated with PVDF paint using roller coating technology, offering a rich variety of colors with uniform tones. This panel can be grooved and bent like regular aluminum composite panels (ACP) and provides excellent flexibility for on-site processing.
Fabricated Panel: Processed in the factory according to design drawings, the surface can be coated with PVDF paint or weather-resistant powder. After welding, the product has a diverse appearance and solid structure. The coating process involves applying weather-resistant powder or PVDF after processing, giving the product a more vibrant color range. Customers can directly transport the finished product to the site for installation, saving on construction costs.
DATA
PRODUCTS PARAMETER
- Item
- Products Specification
- Dimentional Tolerence
- Thickness
- 2, 3, 4, 6mm
- ±0.2 mm
- Width
- 1250mm，1500mm
- ±2 mm
- Length
- 2000mm~6800mm
- ±3mm ~ ±5mm
- Surface Finish
- PVDF/Powder
- /
TECHNICAL DATA
- Item
- Test Items
- Specification of 3 mm
- Basic parameter
- Weight
- 8kg/m2
- Technical properties
- Alloy/Temper of Aluminium Layers
- 3003/5005/5052
- Technical properties
- Alloy/Temper of Aluminium Layers
- H22 / H42
- Technical properties
- Linear Thermal Expansion
- 2.4 mm/m at 100 K temperature difference
- Surface finish
- Paint
- PVDF, POWDER SPRAY
- Test accord to...
- Fire Classification
- EN 13501-1
- Class A1-s1, d0

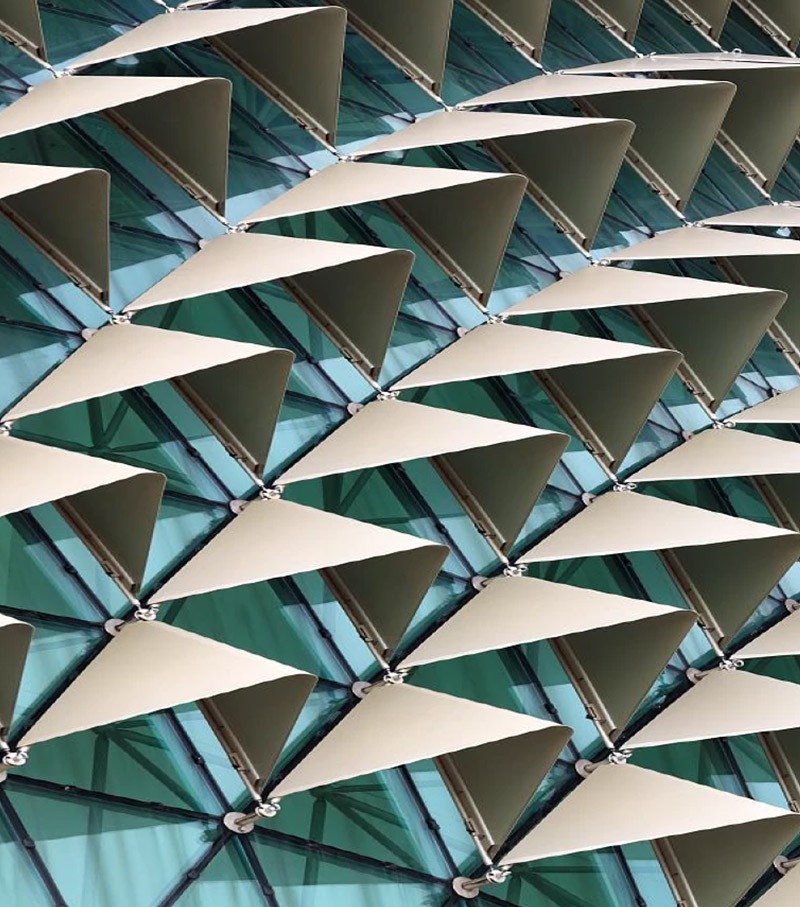

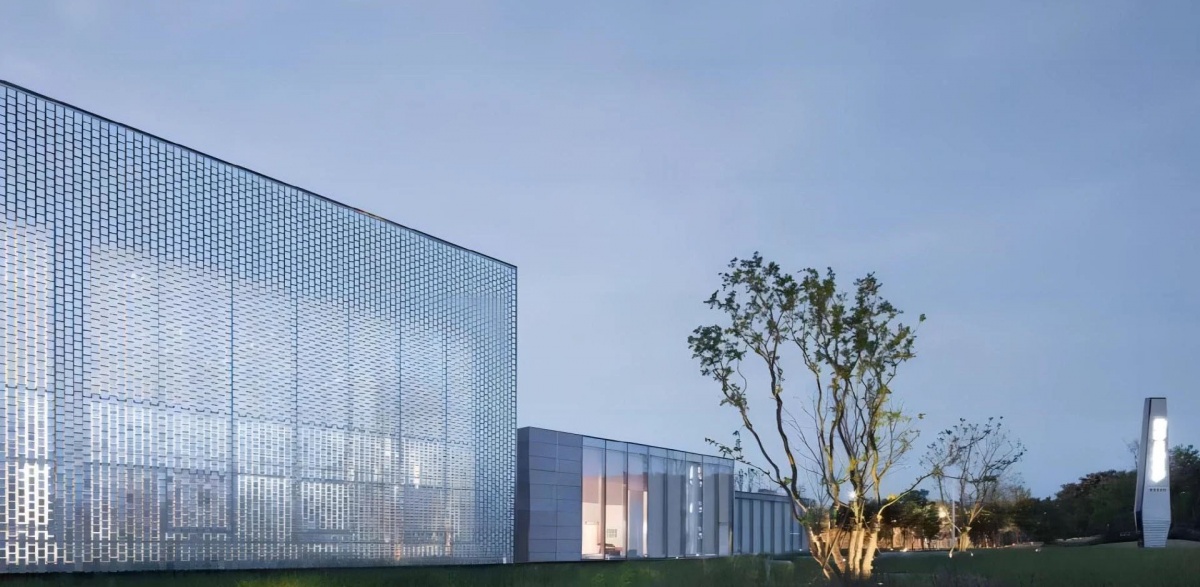

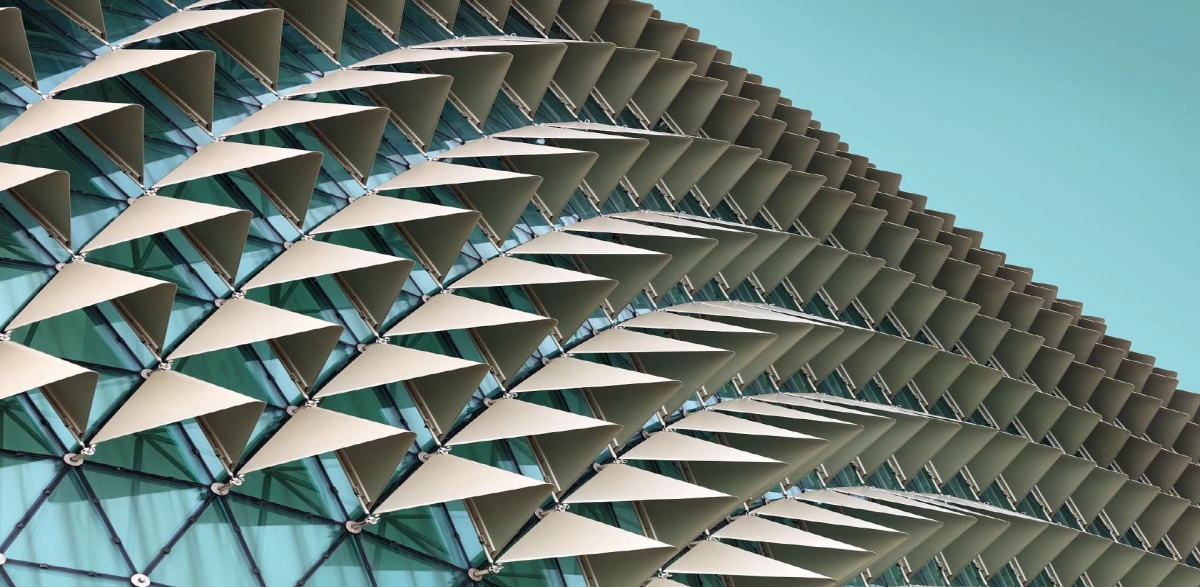

APPLICATIONS
-
- A1 Fireproof
-
- A1 Fireproof
