Aluminium Composite Panel
Aluminium Composite Panel
Aluminium Composite Panel

Aluminium Composite Panel

(for wall cladding)

With the improvement of core technology, Alucosun FR has been developed for strict requirements of fire retardancy regulations in architecture products. Alucosun FR has been requested by worldwide architects and building owners not only by its superb properties such as extreme flatness, high rigidity yet excellent form-ability, but also, the most important, its impressive performance in fire-proof benefiting from its mineral-filled core.

Alucosun FR can be applied on the architecture products in a wide range, especially the public buildings such as shopping malls, hospitals, airports and stations.

Alucosun fire-proof aluminium composite panel is composed of two aluminium sheets and a mineral-filled core that are laminated in the continuous process with high temperature, which ensures remarkable color consistency and high strength.

Aluminium Composite Panel

DATA

Dimensions

  • Item
  • Panel thickness
  • Aluminium Skin Thickness
  • Width
  • Length
  • Weight
  • Recommended size
  • 3mm, 4mm, 6mm
  • 0.3mm, 0.4mm, 0.5mm
  • 1250mm, 1500mm, 1575mm, 2000mm
  • 1000mm-6000mm
  • 4mm B1: 6.8kg/m2 4mm A2: 8kg/m2

TEST REPORT

  • Country
  • Method
  • Alucosun B1
  • Alucosun A2
  • Australia
  • AS 1530-3
  • No ignition
  • No ignition
  • EU
  • EN 13501-1
  • Class B, s1, d0
  • Class A2, s1, d0
  • Germany
  • EN 1187(method 1)/DIN 4102-7
  • Passed
  • Passed
  • Malaysia
  • EN13501-1
  • Class B, s1, d0
  • Class A2, s1, d0
  • Germany
  • BS 476, PART 6&7
  • Class 0; Class 1
  • Class 0; Class 1
  • Singapore
  • EN 13501-1
  • -
  • Class A2
  • Singapore
  • ASTM-E-84
  • Class A
  • -
  • UK
  • BS 6853
  • -
  • Meets requirements of LUL limited
    combustible-noncombustible
  • UK
  • BS 476, Part 6&7
  • Class 0
  • -

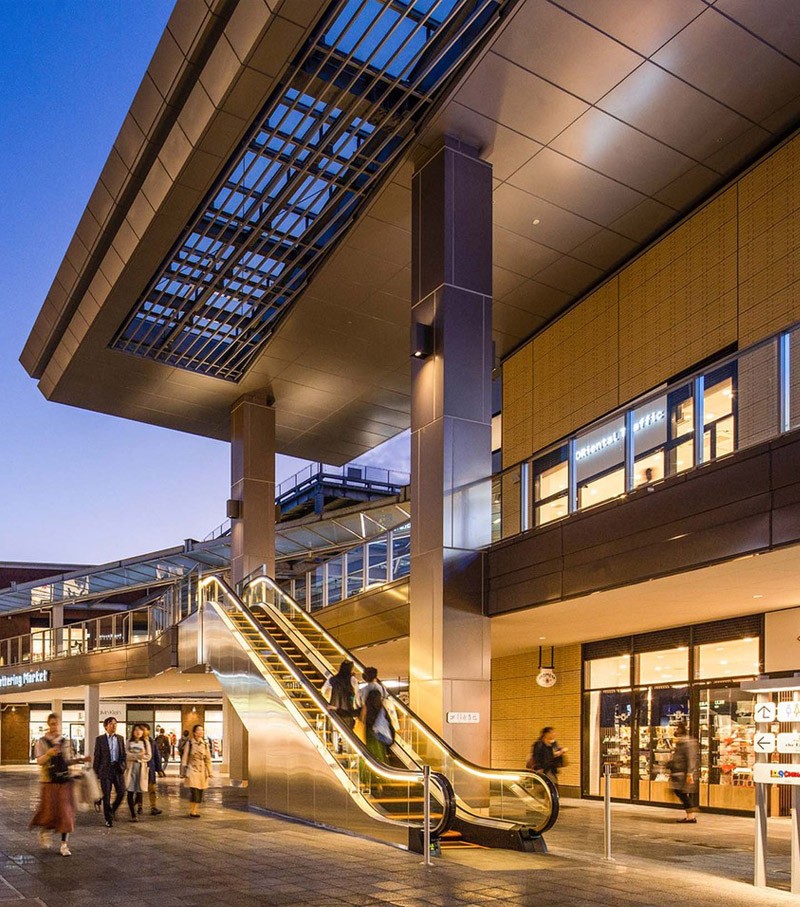

APPLICATIONS

class A fire proof aluminum composite panel
class A fire proof aluminum composite panel
class B fire proof aluminum composite panel
ordinary aluminum composite panel
